As you know, the Harvey Gyro Air G-800, equipped with GYRO AIR technology, has completely revolutionized traditional dust collection. However, our drive for innovation never ceases. To stay ahead in this era of the Internet of Things (IoT), where everything is interconnected, we are proud to unveil the all-new G-800Pro Industrial Dust Processor.
This new iteration incorporates a cutting-edge intelligent system, adding an intelligent layer to its already robust performance. With the integration of an Android system, the brand new UI design is sleek and user-friendly, making operation more seamless than ever before. The Over-the-Air (OTA) updates function of this new system means that your G-800Pro will always be equipped with the latest features and improvements, future-proofing your investment.
Harvey has always been committed to environmental protection and energy saving. Sustainability is one of our key principles in product development. So, the G-800Pro’s redesigned aerodynamic internal structure and high-efficiency permanent magnet synchronous motor not only enhance performance but also achieve up to 94% motor efficiency, contributing to environmental sustainability by significantly reducing energy consumption.
Additionally, thanks to optimized performance, the G-800Pro's maximum air flow has been significantly increased, reaching an impressive 850 CFM (1450 m³/h) @140 mm hose. The maximum static pressure has reached 19-1/4 inch-water (4800 Pa). Together with the unique design of the inlet, making G-800Pro the perfect central dust collection solution for your workshop. With the G-800Pro, Harvey once again sets a new benchmark in the industry, blending innovation, performance, and sustainability. Experience the future of dust collection today with the G-800Pro Industrial Dust Processor.
The all-new G-800Pro is equipped with an advanced Android intelligent system,enabling seamless connectivity. The G-800Pro supports Over-the-Air (OTA) updates,allowing users to effortlessly update to the latest system versions, ensuring theG-800Pro remains at peak performance. The newly designed user interface (UI) is not only easy to operate but also provides a more comfortable and intuitive userexperience.
The G-800Pro features a completely redesigned internal structure with advanced aerodynamic airflow design which facilitates easier cleaning and significantly reducing pressure loss during operation for improved energy efficiency and overall performance.
The G-800Pro's inlet has been optimized in design, allowing for flexible positioning. It can be connected to the ductwork from either the top or the side, greatly enhancing the flexibility of ductwork arrangements and making it more convenient to set up a central dust collection system.
The G-800Pro is equipped with a high-efficiency permanent magnet synchronous motor, whose efficiency has been increased from 87% to 94% while ensuring optimal performance. This motor makes the G-800Pro more stable and reliable during operation, with stronger performance and more significant energy-saving effects.
The GYRO AIR technologyefficiently separates 99.7% of dust particles from the air before filtration, providing the benefit of a lower load on the filters resulting in a longer filter life.
Super quiet (60-71dB(A))
*Max. Air Flow @6 inch hose: 850 CFM (1450 m³/h)
In order to ensure the fixed flow and wind speed, the GYRO AIR is equipped with an intelligent dust cleaning system.
Filter cleaning by pressure difference: If the pressure difference is higher than the setting value, the filter cleaning system functions until the pressure difference is lower than the setting value.

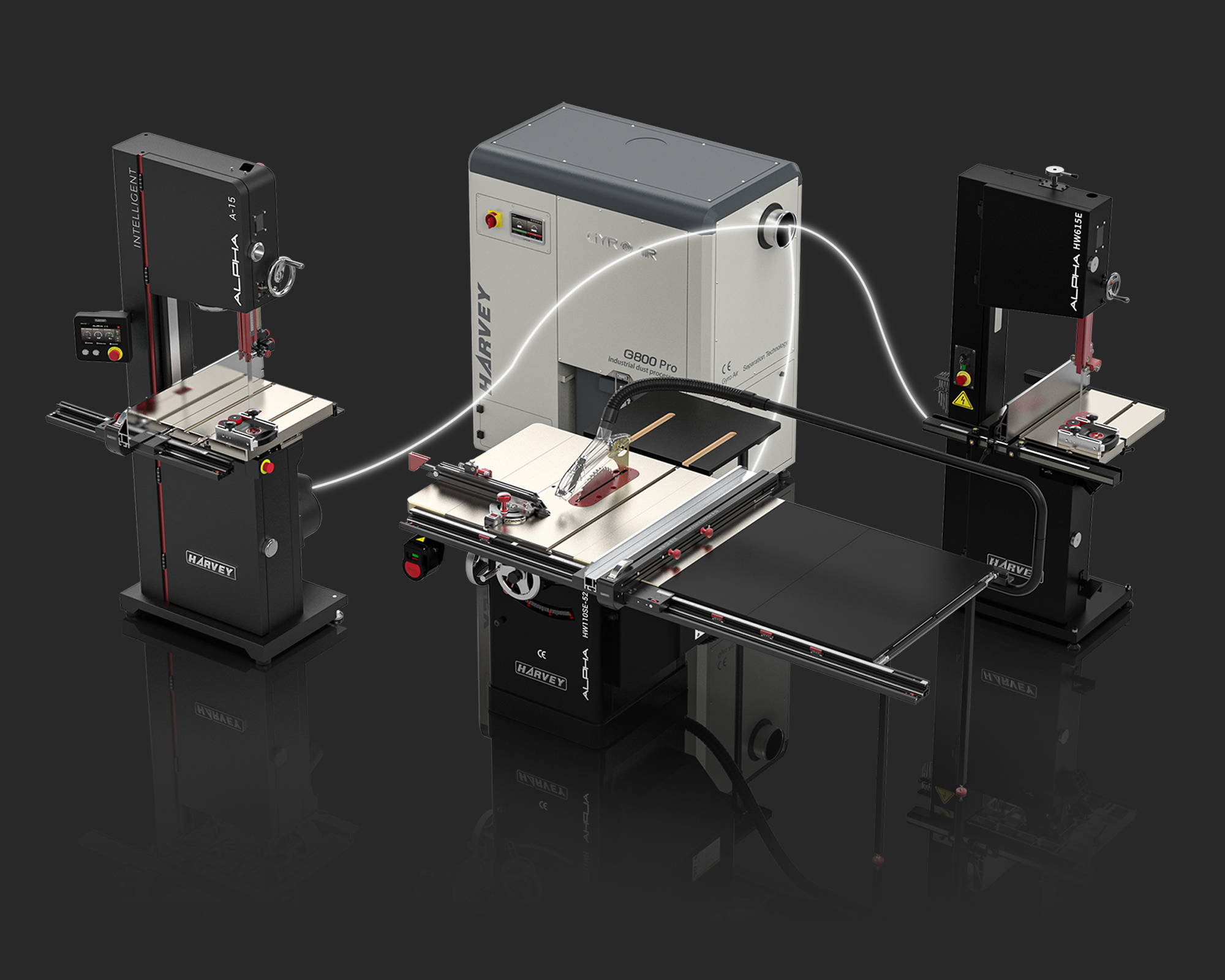

The GYRO AIR Dust Processor can be connected to multiple units.
Interface of Speed Adjustment Mode and Flow Cruise Mode
In order to ensure the same dust collecting capacity, you can choose the flow cruise mode. The GYRO AIR dust processor adopts the VFD, which ensures the stable output of power to the motor causing it to run at a high efficiency without overload.
The speed adjustment mode allows the user to adjust the speed according to the number of units being used with the GYRO AIR, whether it be a single unit or multiple units. The speed adjustment has the capacity to meet different needs of dust collecting while saving energy.

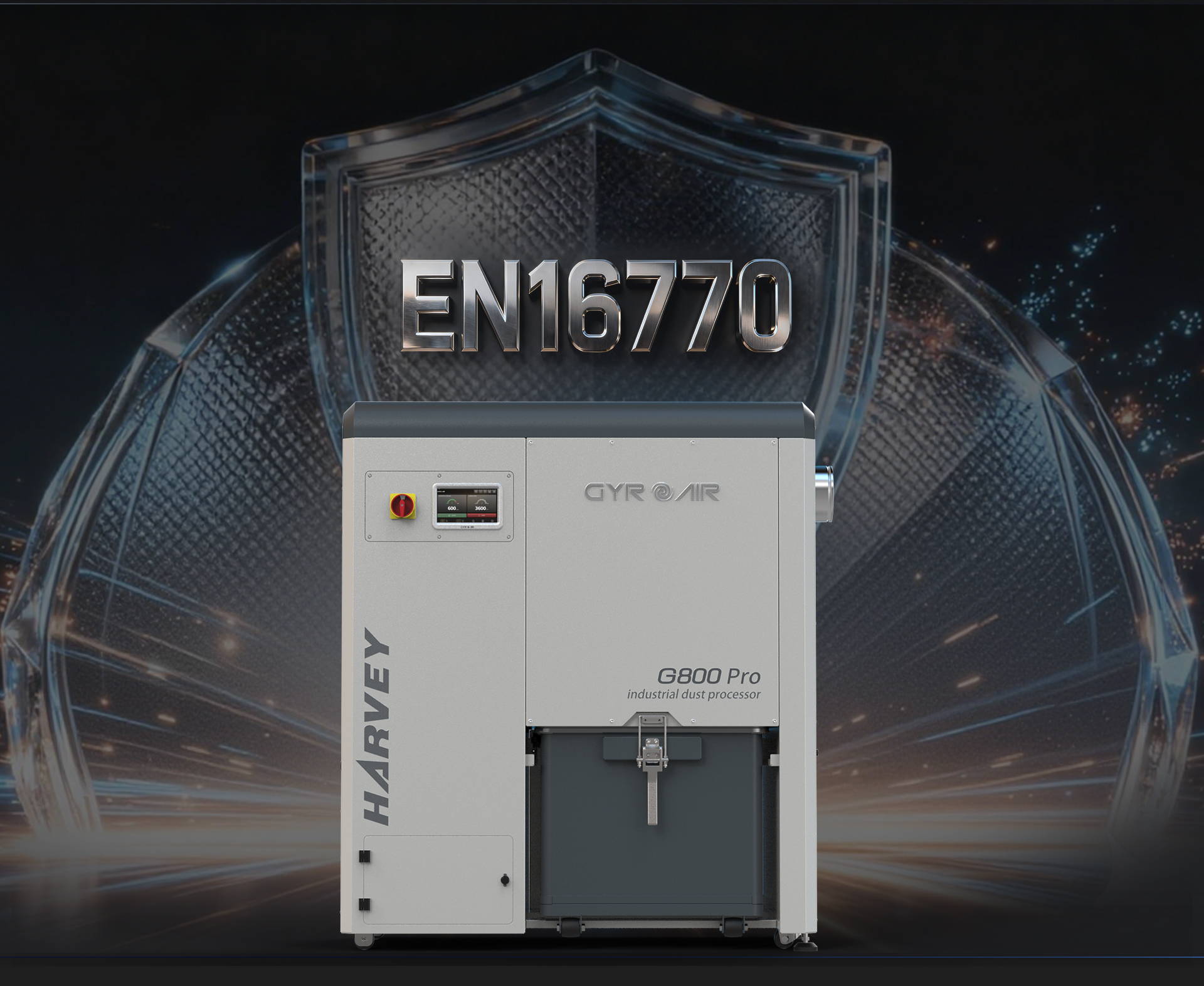

Dust-related fires and explosions may be rare, but they’re real. That’s why the G-800Pro is engineered to meet EN16770 safety standards and adopts a multi-layered prevention strategy to minimize risk at every level.
Its anti-static construction eliminates potential ignition sources, while an integrated dust concentration sensor continuously monitors airborne particulates. If concentrations reaches the Lower Explosive Limit, the system automatically triggers an immediate shutdown, significantly reducing the risk of explosion.
* EN16770 is a European standard specifying safety requirements for dust extraction and filtration systems used in woodworking machinery to reduce fire and explosion risks.
